TSRIDIOPEN
An application with measurement and various view
functions for fastviewing and sharing the CAD designs
on smartphones.
Scan QR code to
download
An application with measurement and various view
functions for fastviewing and sharing the CAD designs
on smartphones.
Scan QR code to
download
2D / 3D drawings open slowly2D / 3D drawing files are large and open slowly or get stuck.
It is difficult to see different drawingsThere are many CAD software and drawing formats, so it is very inconvenient to view drawings.
Low communication efficiency Unable to communicate drawings efficiently with colleagues and customers anytime, anywhere.
Low drawing securityAfter sending the drawings, the security is low, it is easy to disclose the secrets, and there is no security guarantee for the technical secrets.

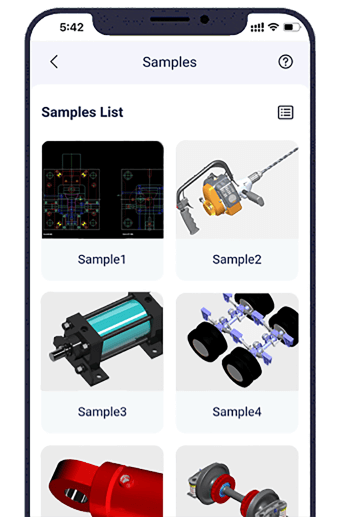

It supports quick viewing of more than 40 kinds of 3D models and 2D CAD drawings on mobile phones, such as 3D:.CATPart, .CATProduct, .cgr, .model, .exp, .session, .prt, .prt.*, .asm, .asm.*, .par, .asm, .psm, .prt, .ipt(V6-V2021), .iam(V11-V2021), .sldprt, .sldasm, .x_t, .xmt_txt, .x_b, .xmt_bin, .p_b, .xmp_bin, .p_t, .xmp_txt, .sat, .sab, .asat, .asab, .igs, .iges, .stp, .step, .stpZ, .stpx, .jt, .xcgm, .3dm, .3dxml, .stl, .obj, .3mf, .vda,and 2D: .dwg, .dxf.
It provides powerful graphics viewing and interaction functions of 3D modelsand CAD drawings, supports multi angle viewing of product 3D model appearance structure, internal structure, BOM information, PMI nformation, etc.

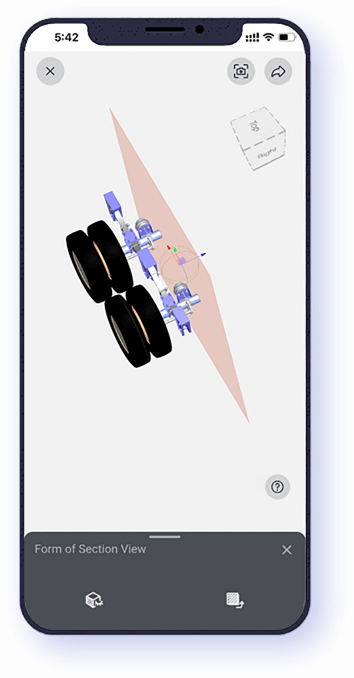

At the same time, it supports a variety of interactive drawing viewing functions, such as perspective, sectioning, structure tree,measurement, bounding box, PMI, explosion, drag, translation, zoom, rotation and so on.

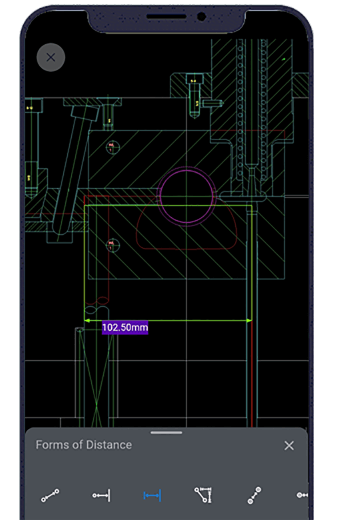

It supports rapid measurement of dimension, area, volume and angle data of 2D and 3D CAD drawings, which is very convenient.

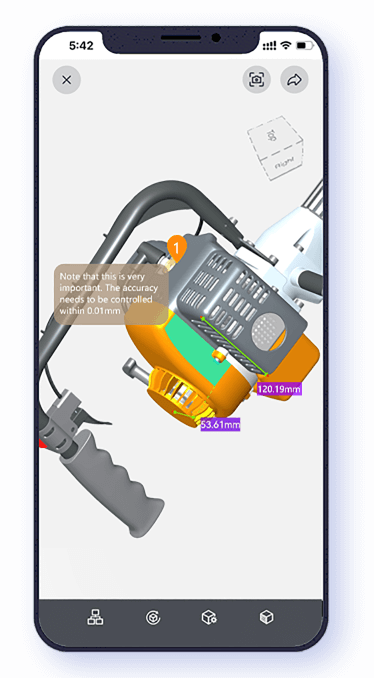

Annotate,comment on 3D models and 2D drawings, conduct professional and technical communication based on drawings.

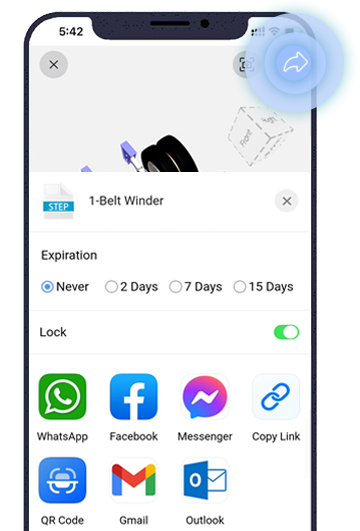

Share 3D models and CAD drawings stored on mobile phones, computers to others with one click, and provide [public sharing] and [encrypted sharing]. Encrypted sharing can set access password, validity period, access times, etc., so as to realize secure sharing.
